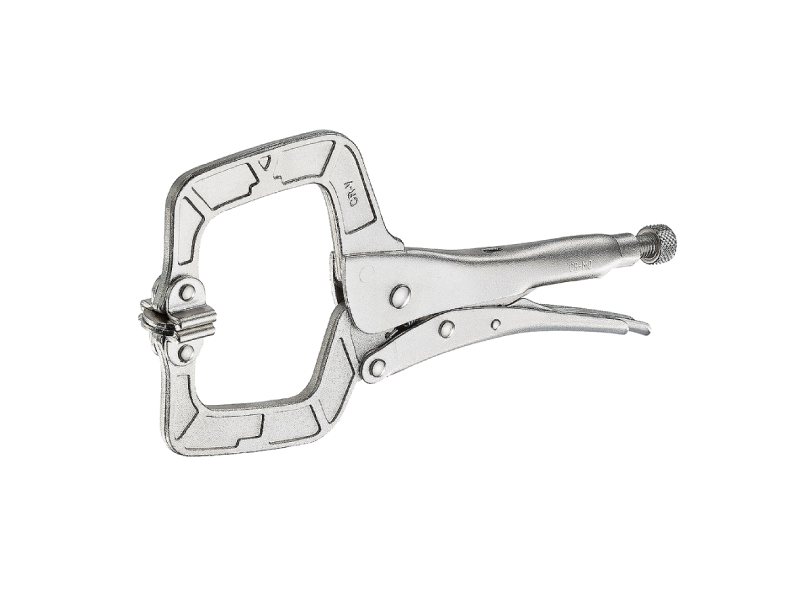

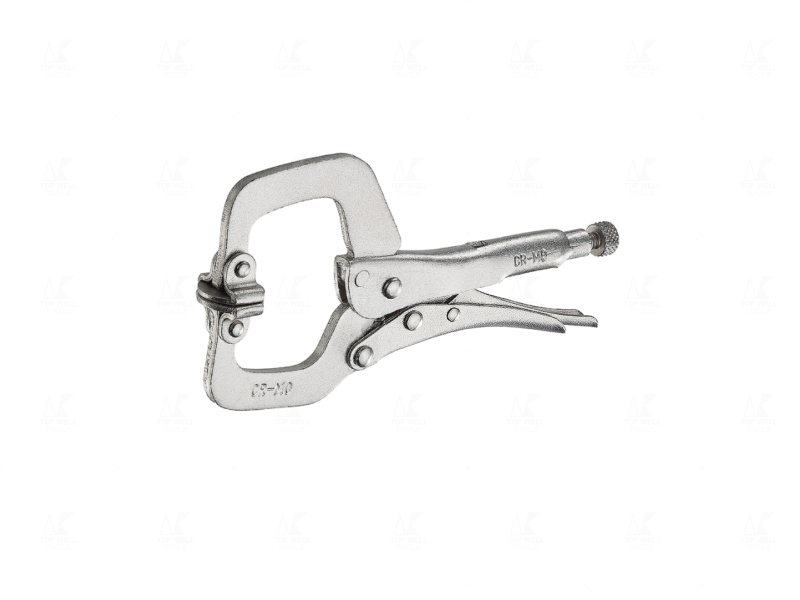

6" Locking C-Clamp with Swivel Pads (European type)

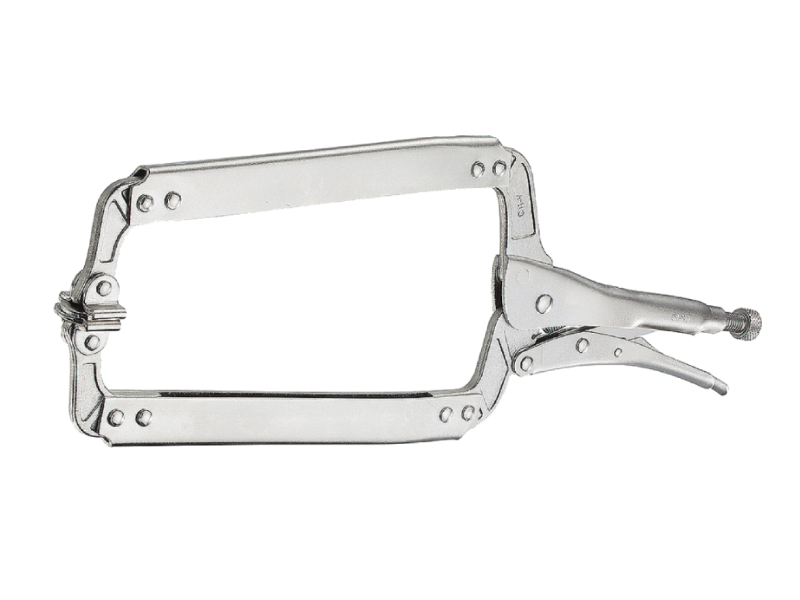

11" Locking C-Clamp with Swivel Pads (European type)

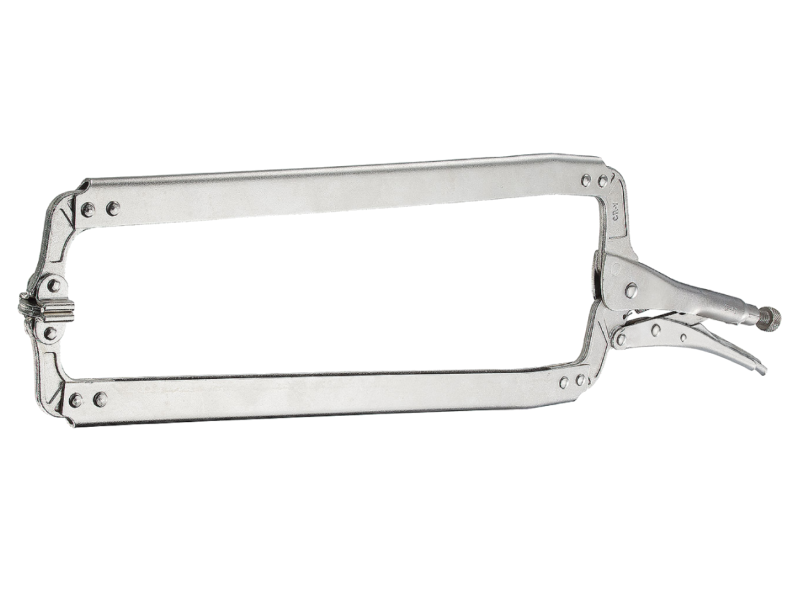

18" Locking C-Clamp with Swivel Pads (European type)
18" Locking C-Clamp with Swivel Pads (European type)
Locking C-Clamp with Swivel Pads Application
6" Locking C-Clamp with Swivel Pads (European type)
11" Locking C-Clamp with Swivel Pads (European type)
18" Locking C-Clamp with Swivel Pads (European type)
18" Locking C-Clamp with Swivel Pads (European type)
Locking C-Clamp with Swivel Pads Application
Model:CP406 /CP411 /CP418 /CP424
Locking C-clamps With Swivel Pads
Add to inquiry
Locking C-Clamp with Swivel Pads (EU type)

TOP WELL – Swivel Pad C-Clamp Locking Pliers Manufacturer

TOP WELL is a professional swivel pad C-clamp locking pliers manufacturer, delivering precision-crafted hand tools globally for over 40 years. Proudly based in Taiwan, we specialize in manufacturing high-performance clamping tools trusted by industrial users and distributors worldwide.

Our locking vise-grip clamps are widely applied in automotive repair, machinery maintenance, woodworking, and metalworking. Featuring a quick-release trigger mechanism, they allow for efficient locking and unlocking—ideal for repetitive clamping tasks.

To ensure long-lasting performance, all clamps are made from proprietary alloy steel, with copper-welded jaws and frame for extra strength. The spring, crafted from SWPC wire, withstands over 35,000 fatigue cycles, delivering consistent, reliable clamping in demanding conditions.

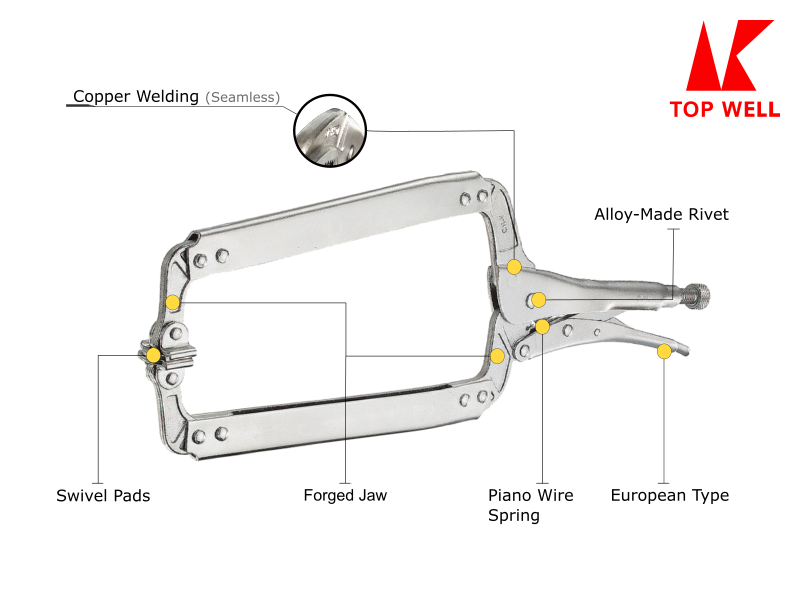

Key Features – Locking C-Clamps with Swivel Pads

  • Wide-opening jaws enhance versatility in clamping irregular shapes

  • Designed for use in tight or hard-to-reach areas

  • Swivel pads securely grip tapered, angled, or delicate surfaces without damage

  • Built from heat-treated, high-grade alloy steel for superior toughness

  • Micro-adjustment screw enables precise pressure control and alignment

  • Finished with nickel plating for rust resistance and a clean, professional look

  •

    Specification

    Item No.

    Length

    Jaw opening

    Throat Depth

    Weight

    Type

    CP406

    6”(170mm)

    0-40mm

    35mm

    250g

    European

    CP341

    11”(285mm)

    0-75mm

    65mm

    750g

    European

    CP418

    18”(450mm)

    0-120mm

    225mm

    1150g

    European

    CP424

    24”(610mm)

    0-140mm

    390mm

    1410g

    European
