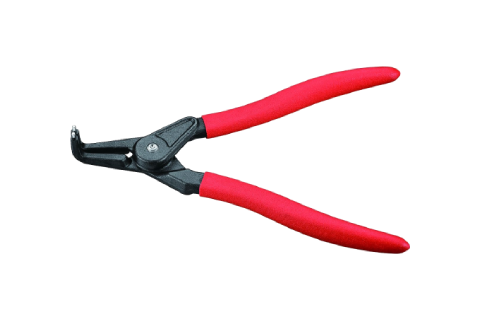

90゜Retaining Ring Pliers (External Ring)

90゜Retaining Ring Pliers (External Ring)

90゜Retaining Ring Pliers (External Ring) (Circlip Pliers)
90゜Retaining Ring Pliers (External Ring) (Circlip Pliers)
Model：RL155 /RL107 /RL109
90゜Retaining Ring Pliers (External Ring) (Circlip Pliers)
Add to inquiry
90゜Retaining Ring Pliers (External Ring) (Circlip Pliers)

TOP WELL is a professional 90 degree external snap ring pliers manufacturer. Our various products have been provided to world since 1983.

  • For fitting retaining ring onto shaft or into bores.

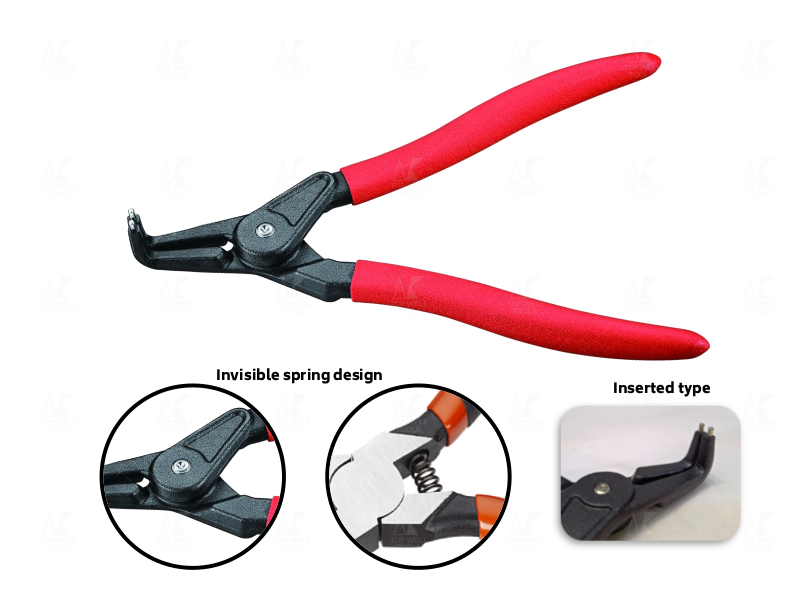

  • Concealed Spring for easy repetitive work.
  • Inserting bearing steel spikes for heavy duty applications.
  • Non-slip spike angle enables the ring to stick firmly to the spikes  when compressing or expanding.


    Specification

    Item No.

    Length

    Weight

    Capacity

    Tip dia.ψ

    Handle

    RL155

    5”(130mm)

    90g

    10-25mm

    1.3mm

    PVC Dip.

    RL107

    7”(170mm)

    175g

    19-60mm

    1.8mm

    PVC Dip.

    RL109

    9”(215mm)

    290g

    40-100mm

    2.3mm

    PVC Dip.
