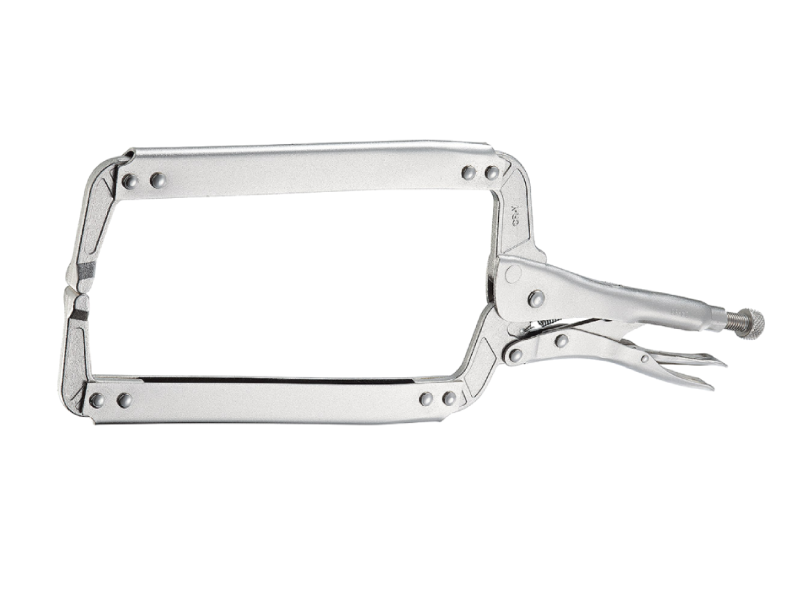

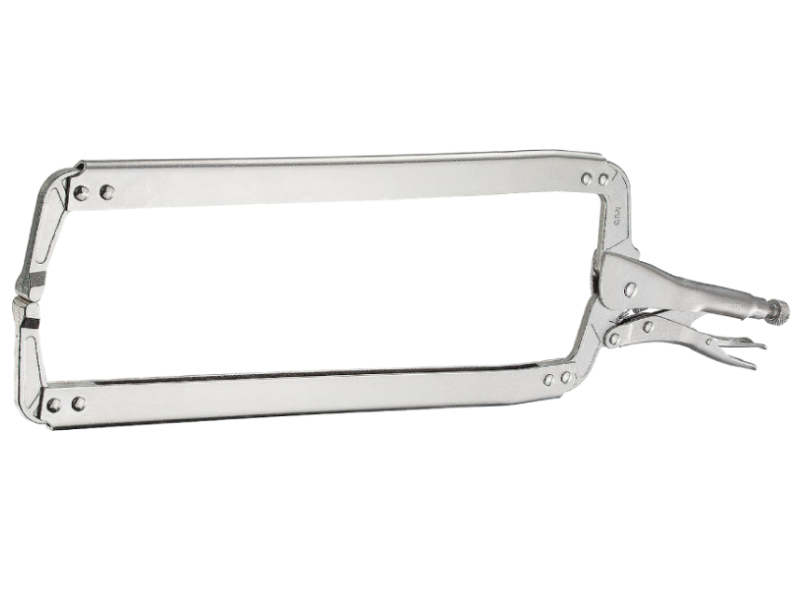

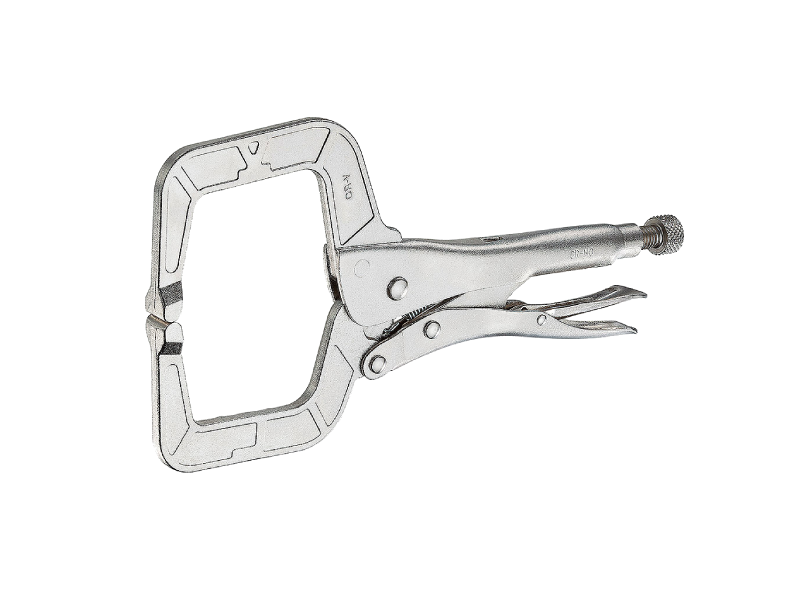

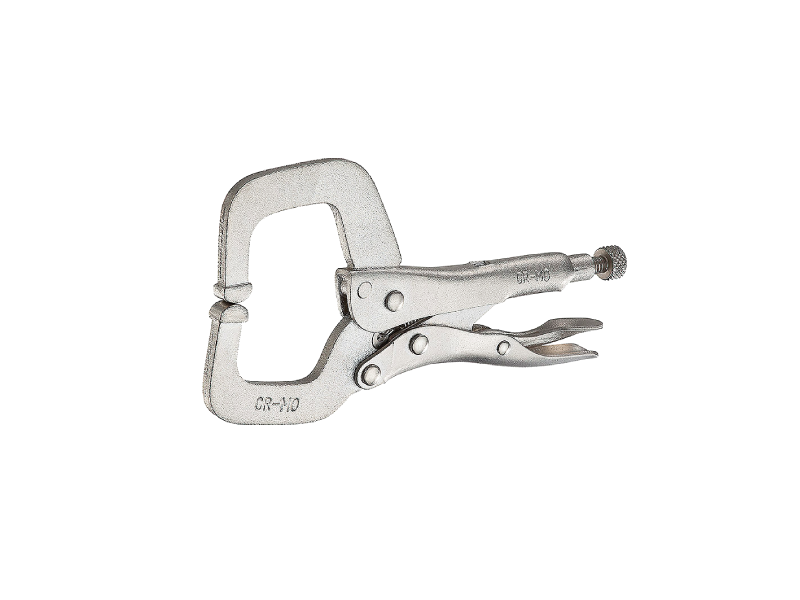

Locking C-Clamp with Regular Tip (US type)

6" Locking C clamp with regular tip
11" Locking C clamp with regular tip
18" Locking C clamp with regular tip
24" Locking C clamp with regular tip
Locking C clamp with regular tip
6" Locking C clamp with regular tip
11" Locking C clamp with regular tip
18" Locking C clamp with regular tip
24" Locking C clamp with regular tip
Locking C clamp with regular tip
Model:CC306 /CC311 /CC318 /CC324
Add to inquiry
Locking C-Clamp with Regular Tip (US type)

TOP WELL – Vice Grip C-Clamp Manufacturer with Over 40 Years of Expertise

With over four decades of industry experience, TOP WELL is a globally trusted manufacturer of locking C-clamps, offering high-quality and reliable solutions to professionals across automotive, machinery, woodworking, and metalworking sectors.

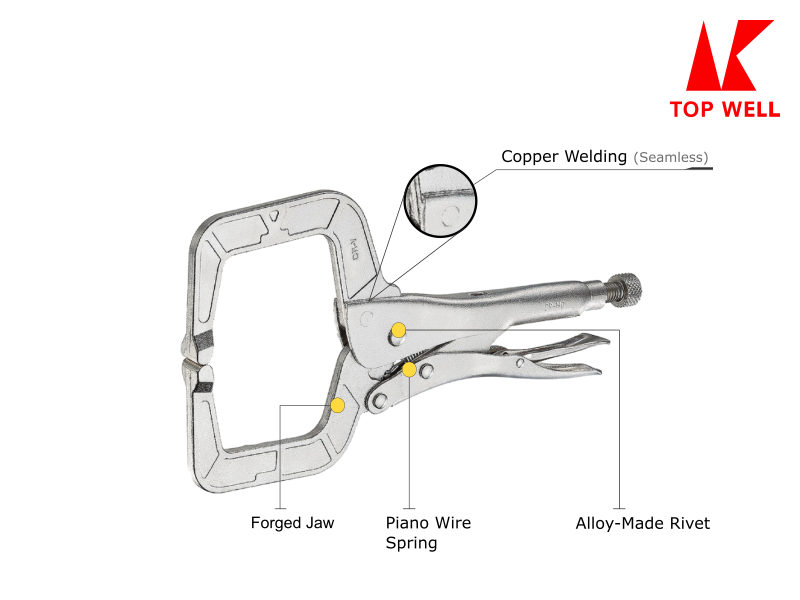

Our locking C-clamps feature a trigger release mechanism that allows for fast and secure locking and unlocking—improving efficiency and safety on the job. Built from specially formulated alloy steel and strengthened with copper-welded jaws and frame, these clamps are designed for maximum durability under high-stress applications. The internal SWPC wire spring has passed 35,000 fatigue cycles, ensuring long-term, consistent performance.


Key Features Of Locking C-Clamps with Regular Tips

  • Wide-opening jaws offer versatile clamping across various shapes and sizes

  • Ideal for hard-to-reach areas and precision component holding

  • Regular tips deliver high surface pressure in tight spaces

  • Constructed from high-grade, heat-treated alloy steel for enhanced toughness

  • <>Micro-adjustment screw enables precise jaw opening control and stable alignment during repetitive tasks

  • Finished with nickel plating for corrosion resistance and a long service life



Specification

Item No.

Length

Jaw opening

Throat Depth

Weight

Type

CC306

6”(170mm)

0-40mm

35mm

240g

American

CC311

11”(280mm)

0-90mm

65mm

740g

American

CC318

18”(445mm)

0-160mm

225mm

1140g

American

CC324

24”(605mm)

0-230mm

390mm

1410g

American
