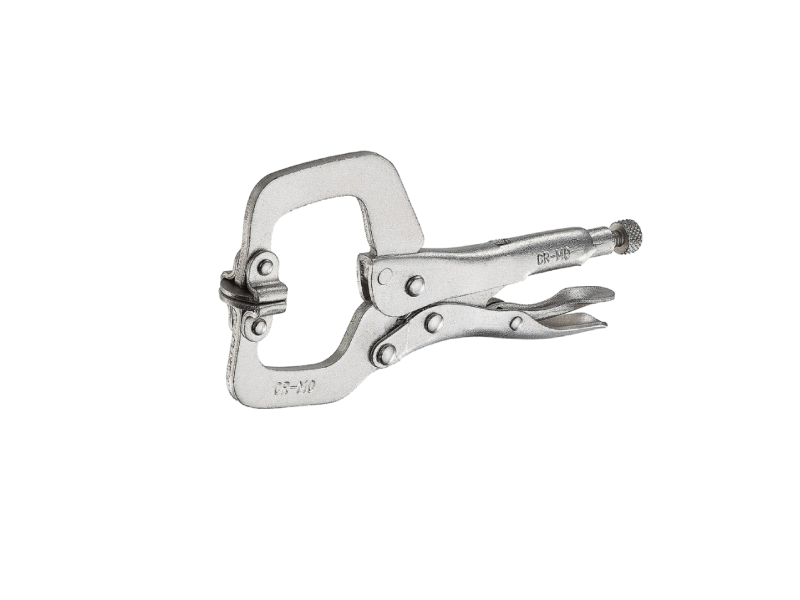

6" Locking C-Clamp with Swivel Pads

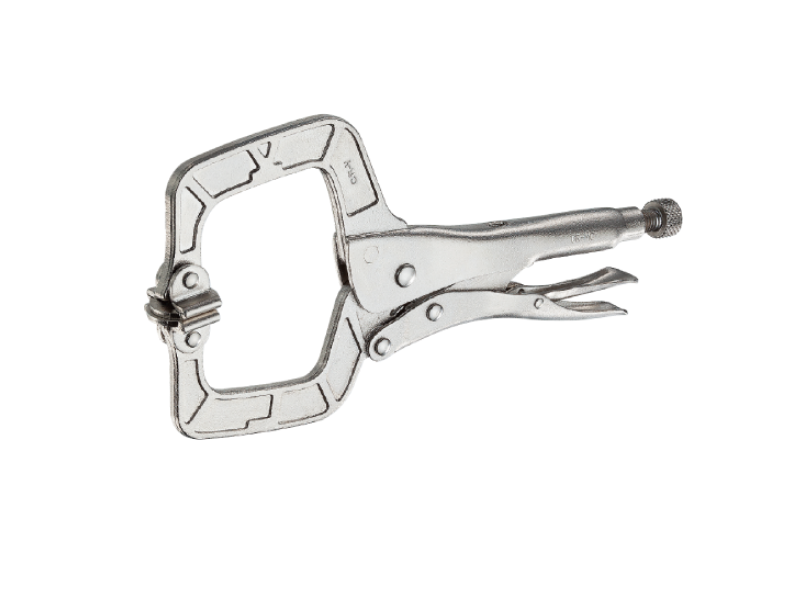

11" Locking C-Clamp with Swivel Pads

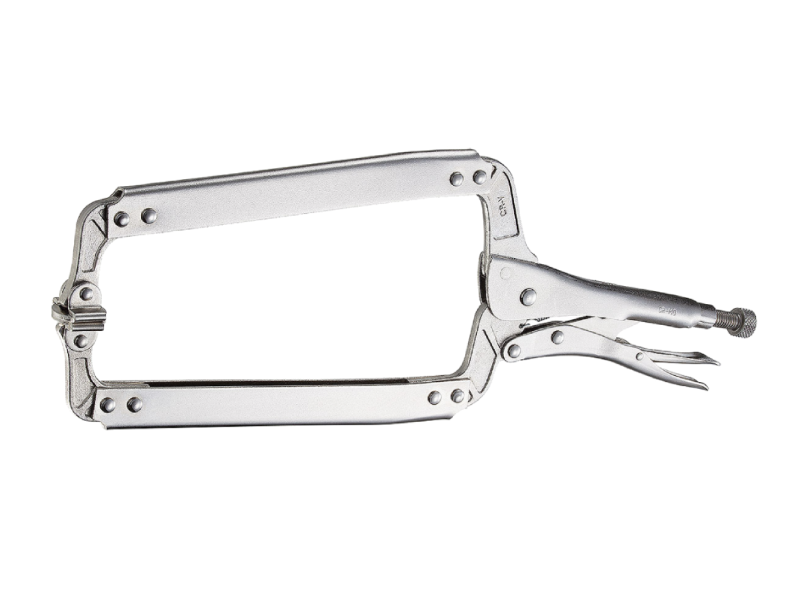

18" Locking C-Clamp with Swivel Pads

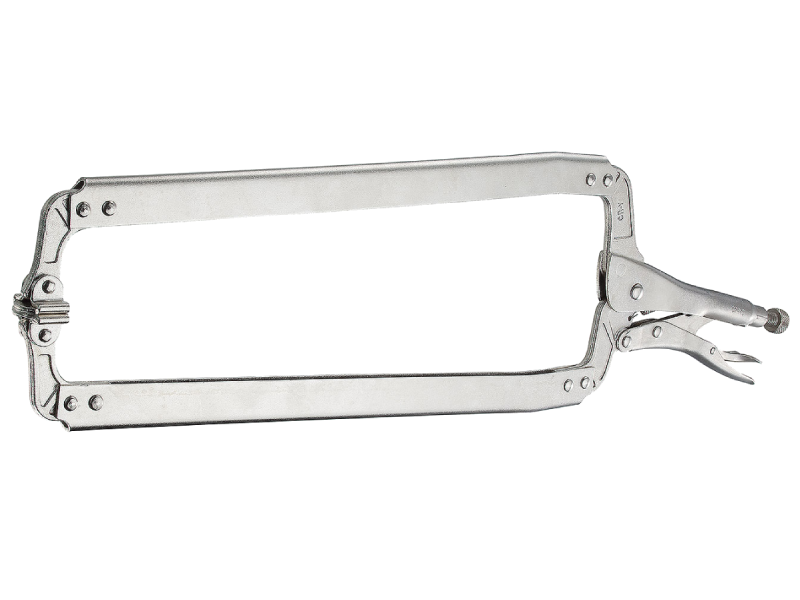

24" Locking C-Clamp with Swivel Pads
Locking C-Clamp with Swivel Pads (US type)
6" Locking C-Clamp with Swivel Pads
11" Locking C-Clamp with Swivel Pads
18" Locking C-Clamp with Swivel Pads
24" Locking C-Clamp with Swivel Pads
Locking C-Clamp with Swivel Pads (US type)
Model:CP306 /CP311 /CP318 /CP324
TOP WELL is the locking C-clamp with swivel pads manufacturer to offer customers the best quality and service for our products.
Add to inquiry
Locking C-Clamp with Swivel Pads (US type)

TOP WELL – Locking C-Clamps with Swivel Pads Manufacturer in Taiwan

TOP WELL is a trusted manufacturer of locking C-clamps with swivel pads, committed to delivering premium quality and excellent service since 1983. Our products are widely recognized for their reliability and are exported globally to meet the needs of professionals across various industries.

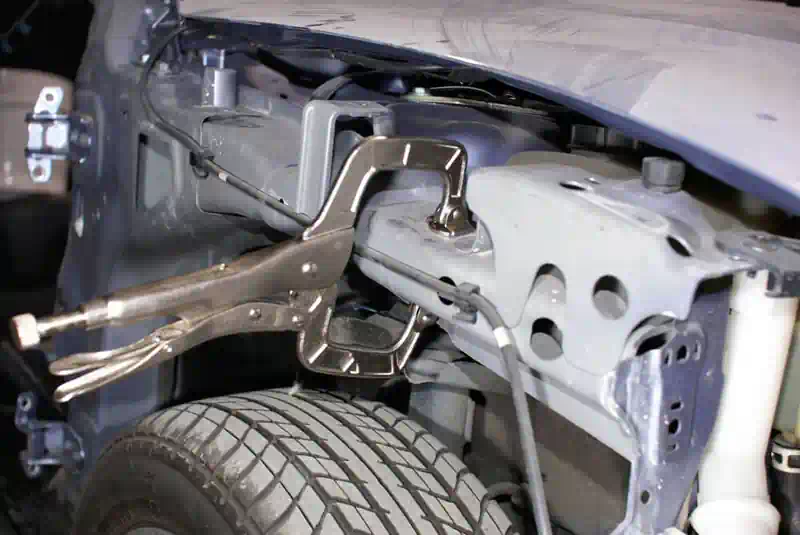

Locking vise-grip clamps are essential for automotive repair, machinery maintenance, woodworking, and metalworking. Equipped with a trigger release mechanism, our clamps allow users to lock and unlock quickly, saving time in repetitive tasks.

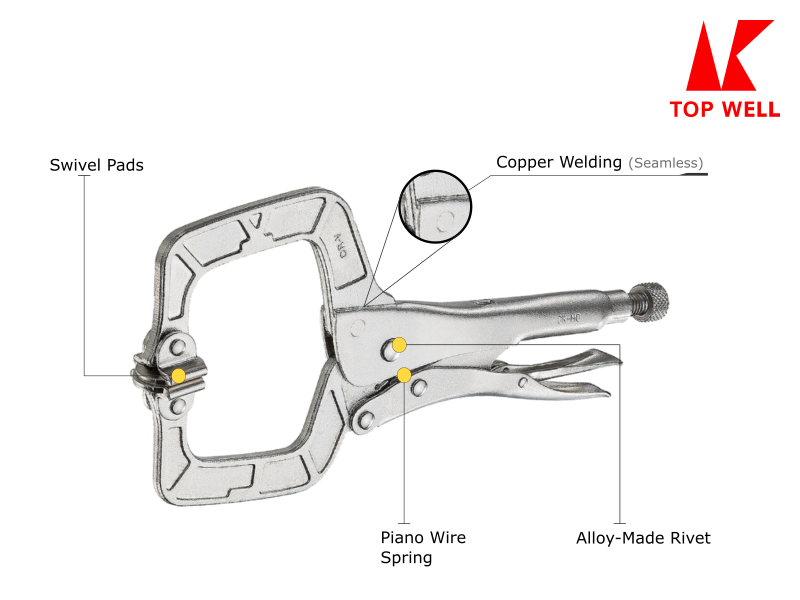

TOP WELL uses specially formulated alloy steel to ensure strength and durability. The body and jaws are copper welded for enhanced structural integrity. The SWPC wire spring passes a rigorous 35,000-cycle fatigue test, ensuring long-term clamping performance.


Key Features Of Locking C-Clamps with Swivel Pads

  • Wide-opening jaws offer versatility for clamping varied shapes and sizes

  • Ideal for hard-to-reach or irregular work areas

  • Swivel pads provide a firm grip on tapered, delicate, or awkward surfaces without damage

  • Built from heat-treated alloy steel for maximum durability

  • Micro-adjustment screw ensures precise jaw control and consistent alignment

  • Nickel-plated finish for enhanced corrosion resistance and a professional appearance

  •

    Specification

    Item No.

    Length

    Jaw opening

    Throat Depth

    Weight

    Type

    CP306

    6”(170mm)

    0-40mm

    35mm

    250g

    American

    CP311

    11”(285mm)

    0-90mm

    65mm

    750g

    American

    CP318

    18”(450mm)

    0-160mm

    225mm

    1150g

    American

    CP324

    24”(610mm)

    0-230mm

    390mm

    1410g

    American
